PB-17061 CNC Hydraulic Press Brake
Model: PB-17061
Brand Name: TLBEND
Highlights:
- Stable design, optimal parameter ratio, excellent precision control
- Full closed-loop electro-hydraulic and servo synchronous control system from Germany, stable control precision, reliable performance
- Suitable for all kinds of workpieces and realize the bending processing with high efficiency
Applications:
- Electric Cabinet
- Elevators
- Furniture Manufacturing
Technical Parameter
| Model | Unit | PB-17061 |
|---|---|---|
| Bending Force | KN | 1700 |
| Bending Length | mm | 6100 |
| Distance Between Uprights | mm | 5000 |
| Throat Depth | mm | 400 |
| Ram Stroke | mm | 200 |
| Opening Height | mm | 480 |
| Ram max.speed | ||
| Approaching | mm/s | 150 |
| Working | mm/s | 9 |
| Returning | mm/s | 100 |
| Main Power | KW | 15 |
| Oil Tank Volume | L | 400 |
| Dimension | mm | 6500 x 1900 x 3450 |
| Weight | kg | 21000 |
| Warranty | Years | 2 |
Specifications apply to standard models. T&L reserves the right to adjust data without notice.
Machine Configuration Overview
Hydraulic System
Electro-hydraulic system is adopted to control dual cylinders to get high synchronized controlling accuracy, high bending accuracy, and repositioning accuracy.
Mechanic Crowning System
Mechanical auto compensation system is adopted to eliminate the effectof the deformed sliding block during bending which may affect bending quality.
User-Friendly Control System
The DELEM DA53T controller provides an intuitive interface, simplifying operation, up to 4+1 axis control.

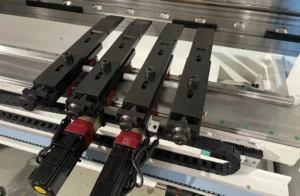

Advanced Backgauge System
The precise backgauge ensures accurate material positioning, supporting multi-bend operations with high-quality, consistent results that meet stringent tolerance requirements for complex parts.
