Accuracy. Durability. Efficiency

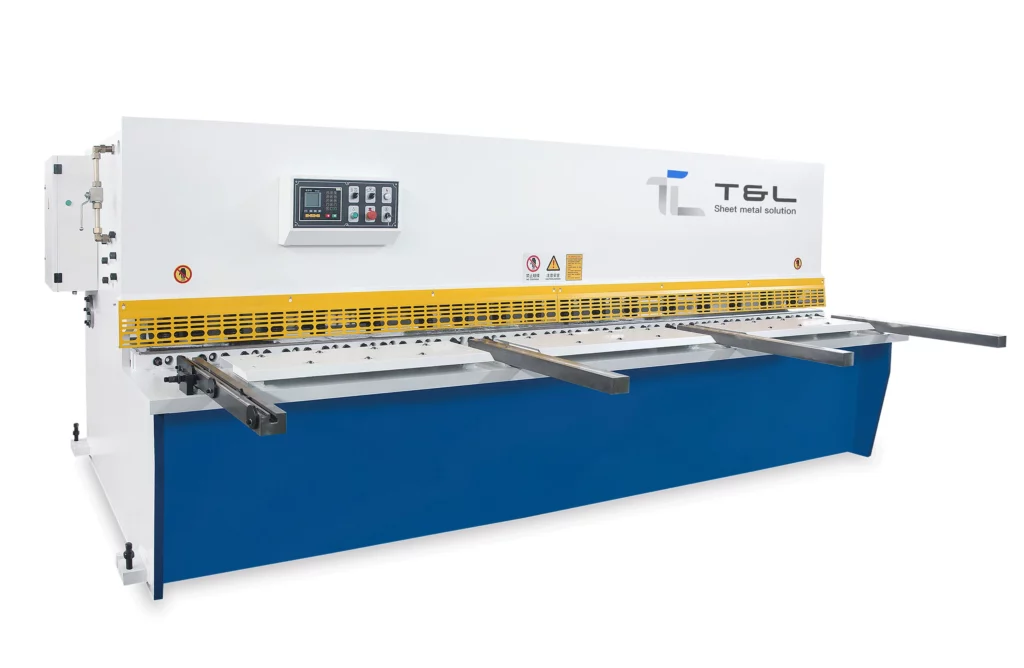

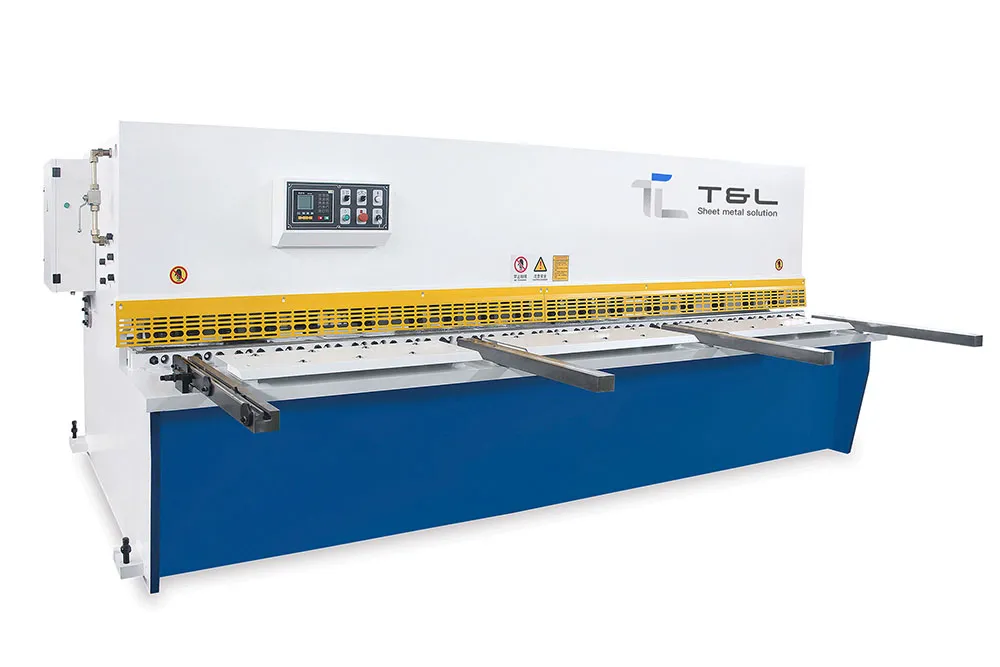

T&L Swing Beam Shearing Machine

T&L’s swing beam shearing machine delivers unmatched performance for sheet metal cutting. With cutting lengths from 2500mm to 6000mm, durable construction, and energy-efficient operation, it’s the ideal solution for precision and reliability in every cut.

Home
Shearing Machine
Swing Beam Shearing Machine

Play Video

Swing Beam Shearing Machines for Sale

QC12K-6*3200 CNC Hydraulic Shearing Machine

Not sure which swing beam shearing machine is right for you?

Tell us your sheet metal processing details!

Key Features of Swing Beam Shearing Machines

High Precision Cutting Capabilities

Delivers cutting precision within ±0.05mm, ensuring the highest quality and consistency for every cut.

Automatic Blade Gap Adjustment

Blade gap automatically adjusts to the material thickness, optimizing cutting quality and reducing wear.

Shearing Count Display

Displays real-time shearing count with memory backup for backgauge position, program, and parameters during power outages.

Imported Ball Screw Mechanism

Incorporates imported ball screws and linear guides to ensure the highest level of positioning accuracy.

Standard Components

Higher Standards, Greater Reliability

Built with precision and premium components, our machines minimize production interruptions, bringing you maximum productivity and cost efficiency.

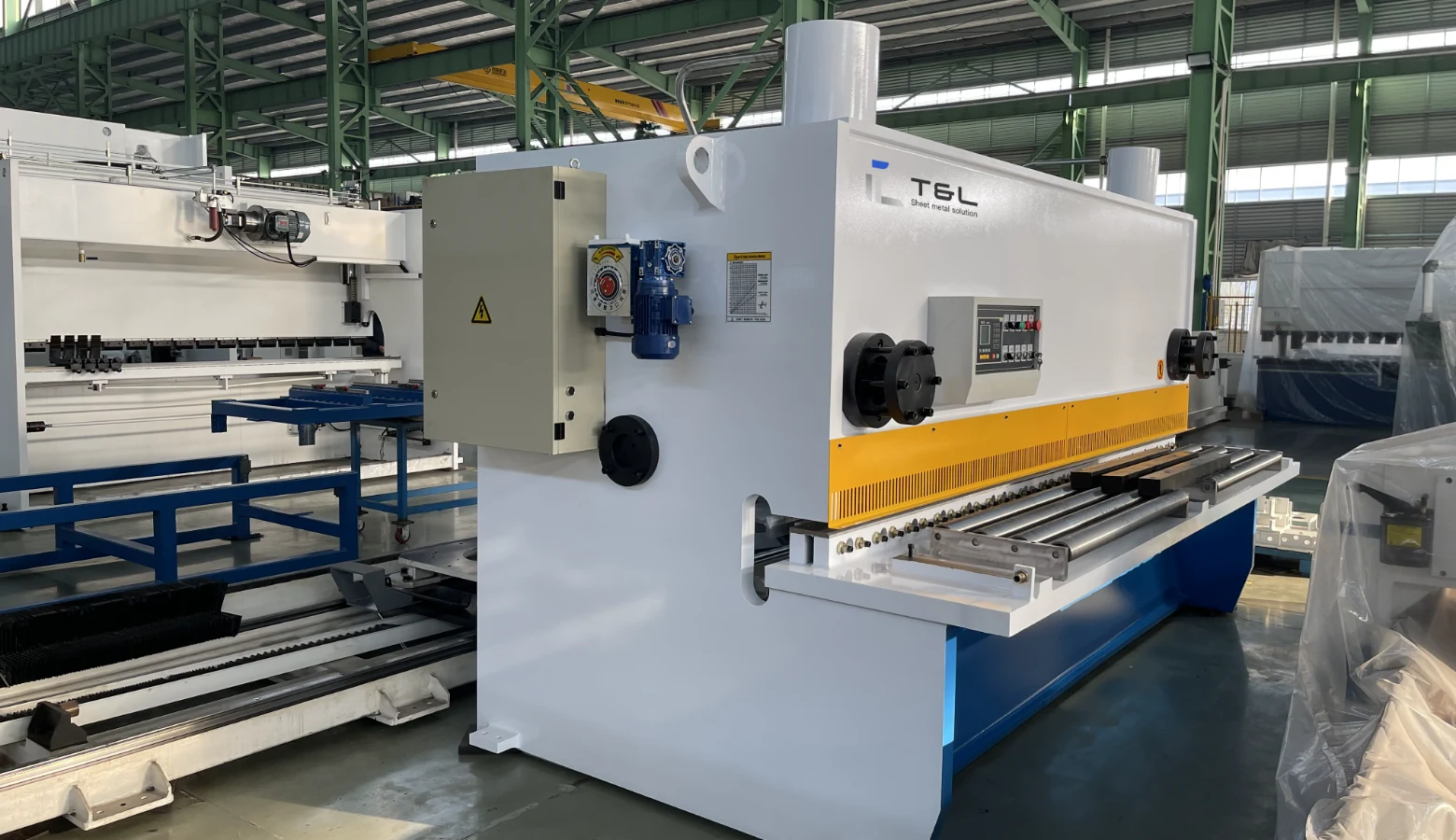

Machine Frame

Built with industrial-grade welded steel construction and enhanced through careful stress relief processing. The robust frame design provides exceptional stability during operation, maintaining precise alignment and minimizing vibration for consistently accurate cuts.

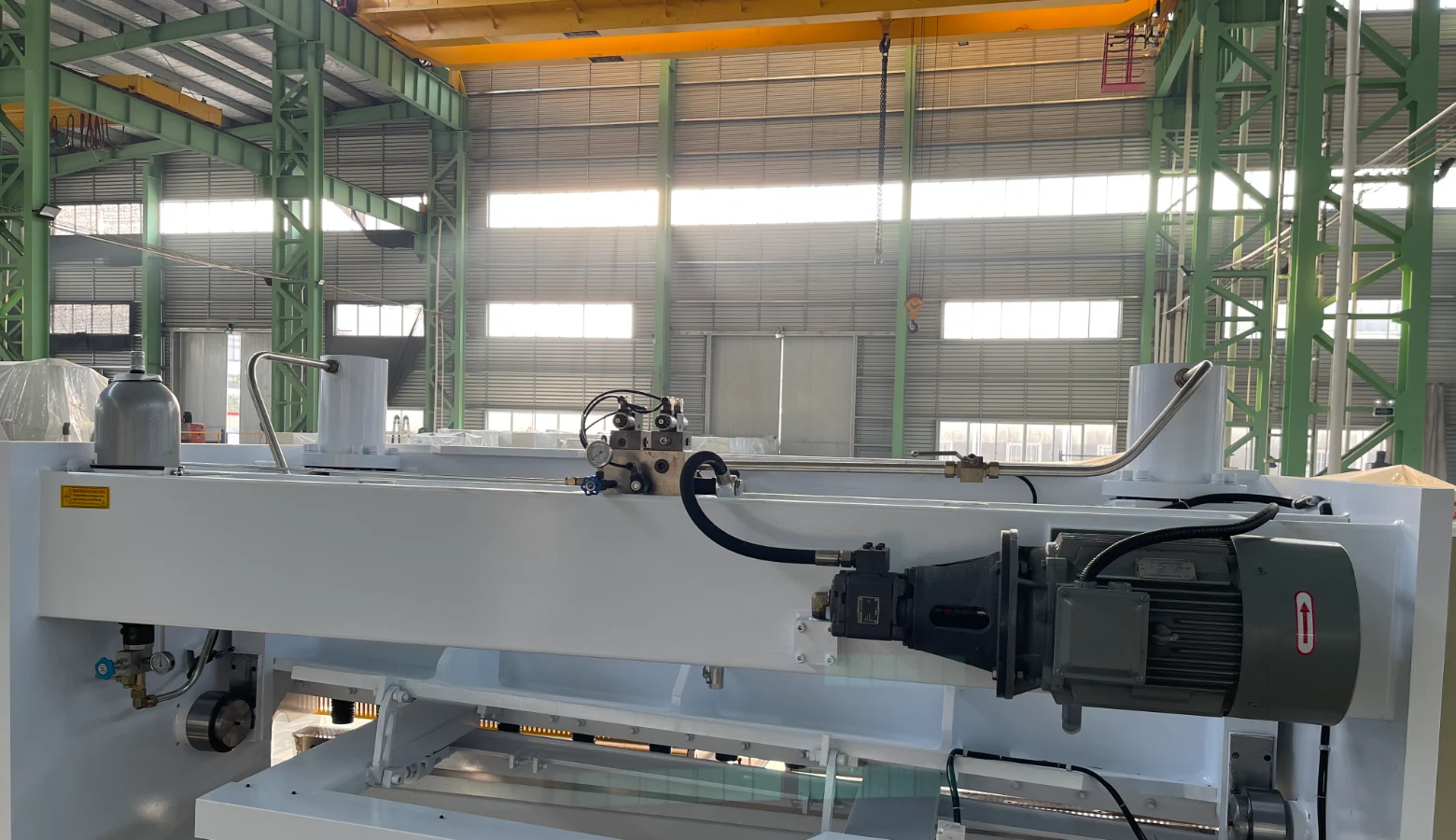

Hydraulic System

Features German HAWE/Rexroth hydraulic components for superior cutting stability. Advanced automatic pressure control and smart temperature monitoring guarantee consistent cutting force and reliable performance in high-volume production.

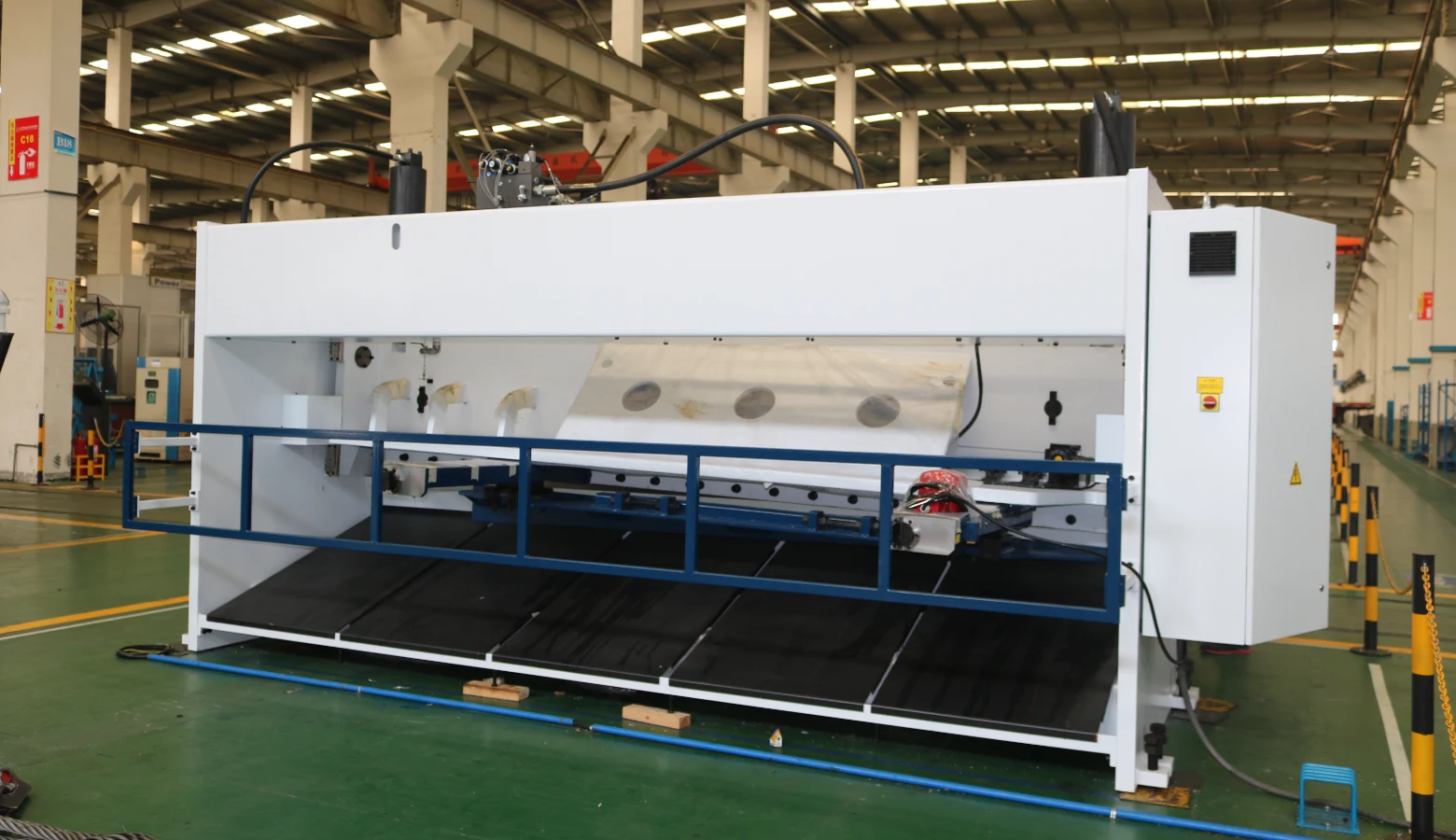

Back Gauge System

High-precision ball screw drive with optical linear scales ensures exact positioning accuracy. Digital control system enables rapid adjustment and stores multiple programming positions for efficient operation.

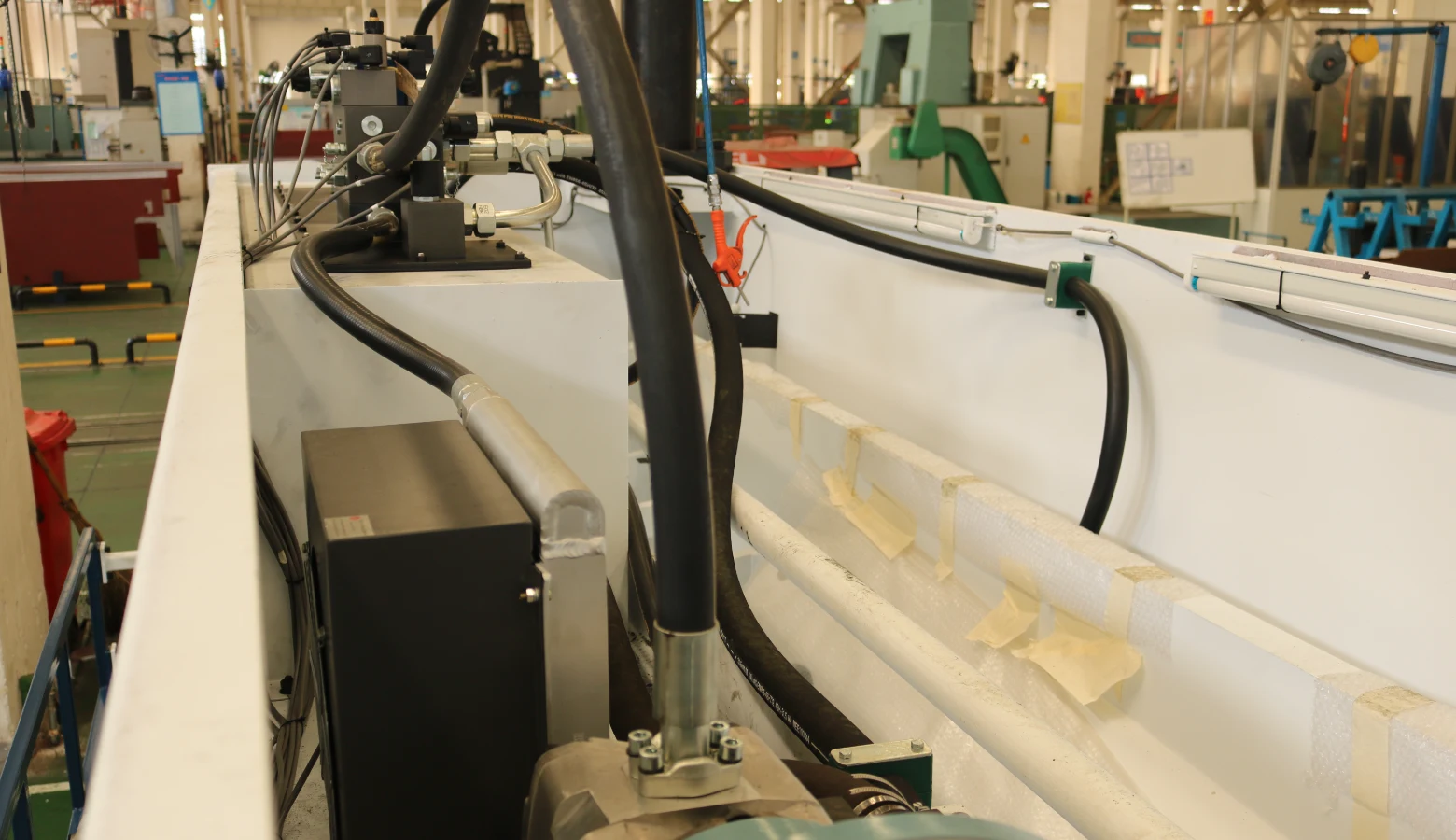

Cutting Line Illumination

Featuring a built-in light alignment system that enables precise material positioning during operation, the machine enhances cutting accuracy and efficiency, making it easier to achieve clean, high-quality shearing results even in demanding applications and varied working conditions.

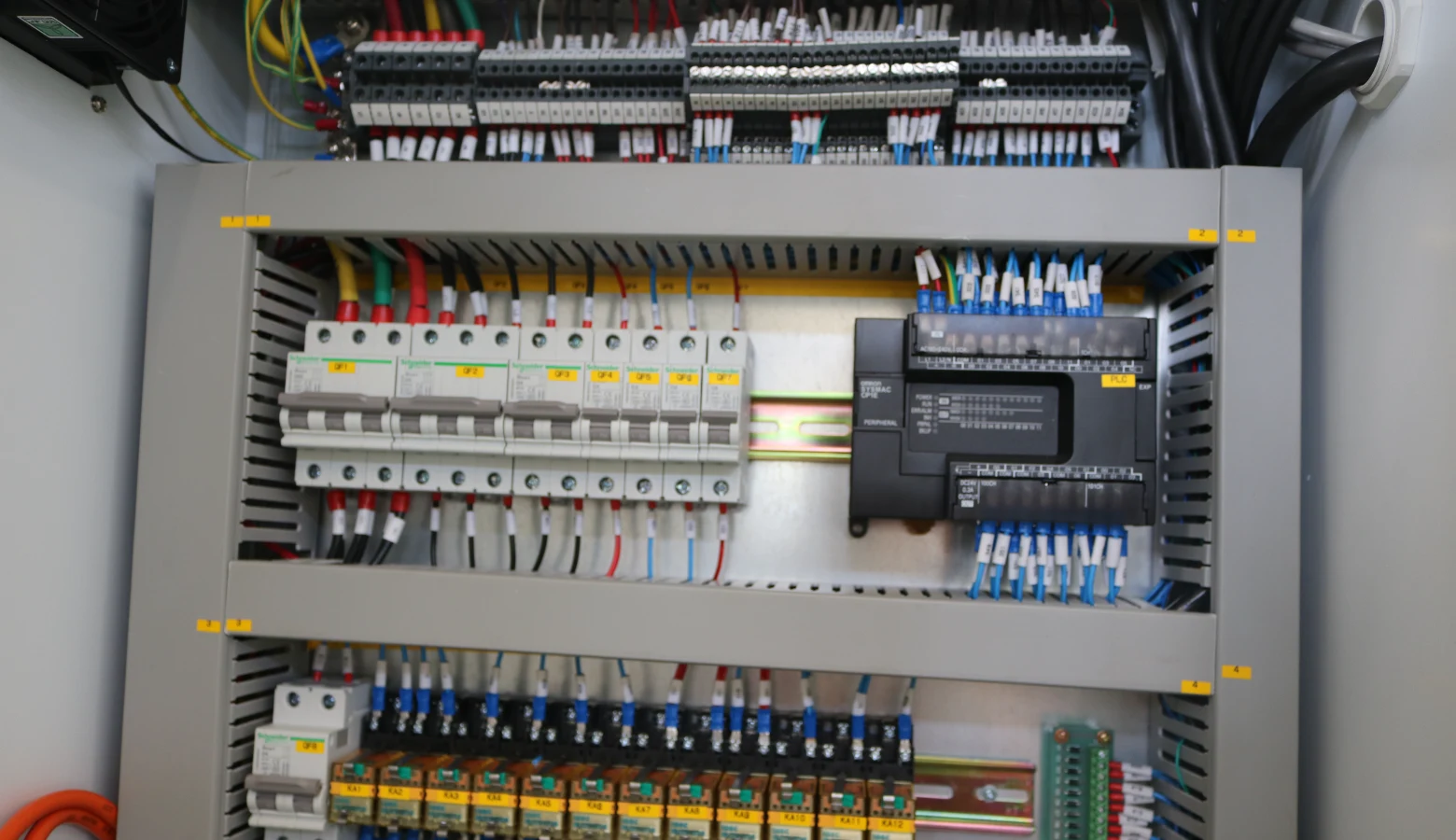

Electrical Parts

Equipped with premium Schneider electric components, delivering industrial-grade reliability and precision control. World-class electrical infrastructure ensures stable performance and seamless functionality across all machine operations.

Technical Specifications

Model	Cutting Thickness (mm)	Cutting Length (mm)	Cutting Angle (°)	Material Strength (KN/cm)	Backgauge Range (mm)	Travel Times	Power (kw)	Dimenson LxWxH(mm)
4×2500	4	2500	1°30'	≤450	20-500	14	5.5	3040×1500×1550
4×3200	4	3200	1°30'	≤450	20-500	12	5.5	3840×1550×1600
4×4000	4	4000	1°30'	≤450	20-550	10	5.5	4600×1800×1700
4×6000	4	6000	1°30'	≤450	20-800	5	7.5	6460×2300×2400
6×2500	6	2500	1°30'	≤450	20-500	14	7.5	3040×1710×1650
6×3200	6	3200	1°30'	≤450	20-500	12	7.5	3840×1710×1650
6×4000	6	4000	1°30'	≤450	20-500	9	7.5	4620×1850×1700
6×5000	6	5000	1°30'	≤450	20-600	8	7.5	3140×1710×1620
6×6000	6	6000	1°30'	≤450	20-800	5	11	6480×2100×2300
8×2500	8	2500	1°30'	≤450	20-500	11	7.5	3040×1700×1700
8×3200	8	3200	1°30'	≤450	20-500	8	11	3860×1700×1700
8×4000	8	4000	1°30'	≤450	20-500	8	11	4640×1900×1750
8×5000	8	5000	1°30'	≤450	20-600	8	11	5400×2400×2000
8×6000	8	6000	1°30'	≤450	20-800	8	15	6480×2100×2350
10×2500	10	2500	1°30'	≤450	20-500	10	15	3040×1800×1700
10×3200	10	3200	1°30'	≤450	20-500	10	15	3860×2000×1700
10×4000	10	4000	1°30'	≤450	20-600	10	15	4650×2100×2000
10×6000	10	6000	1°30'	≤450	20-800	10	18.5	6500×2100×2300
12×2500	12	2500	1°40'	≤450	20-600	12	18.5	3140×2050×2000
12×3200	12	3200	1°40'	≤450	20-600	10	18.5	3880×2150×2000
12×4000	12	4000	1°40'	≤450	20-600	10	18.5	4680×2230×2150
12×5000	12	5000	2°	≤450	20-600	6	18.5	3245×1900×1900
12×6000	12	6000	2°	≤450	20-1000	5	22	6900×2600×2700
16×2500	16	2500	2°	≤450	20-600	10	22	3140×2150×2000
16×3200	16	3200	2°	≤450	20-600	10	22	3880×2150×2000
16×4000	16	4000	2°	≤450	20-600	10	22	4650×2400×2200
16×5000	16	5000	2°	≤450	20-1000	6	22	5900×2600×2600
16×6000	16	6000	2°	≤450	20-1000	5	30	6900×2700×2600
20×2500	20	2500	2°30'	≤450	20-700	8	37	3440×2400×2350
20×3200	20	3200	2°30'	≤450	20-700	8	37	4150×2450×2350
20×4000	20	4000	3°	≤450	20-1000	5	37	4850×2600×2400
20×6000	20	6000	3°	≤450	20-1000	4	37	6700×3000×3000
25×2500	25	2500	3°	≤450	20-900	8	45	3200×2650×2650
25×3200	25	3200	3°	≤450	20-900	5	45	4200×2700×2800
30×2500	30	2500	3°	≤450	20-1000	4	45	3300×2900×3000
30×3200	30	3200	3°30'	≤450	20-1000	4	45	4200×2500×2600
40×2500	40	2500	4°	≤450	20-1000	3	75	3200×3300×3200
40×3200	40	3200	4°	≤450	20-1000	3	90	4300×3300×3000

Specifications apply to standard models. T&L reserves the right to adjust data without notice.

Customization Options Tailored for Your Business

Engineered for versatility, our shearing machines offer customizable options to precisely match your production requirements, ensuring seamless integration and optimal performance tailored to support the unique demands of your operations.

Only 5-Step Away from Your Ideal Machine

Requirements Analysis

Detailed consultation to understand your production needs, technical requirements, and specific industry standards.

Technical Design

Our engineering team develops customized specifications and solutions based on your requirements, including detailed technical drawings.

Solution Review

Collaborative review of the proposed solution, ensuring all specifications meet your needs before production begins.

Manufacturing & Testing

Production of your custom equipment with comprehensive quality control and 72-hour trial operation testing.

Delivery & Support

Professional delivery, installation guidance, and comprehensive training to ensure optimal equipment performance.
